Overview - Front Side Window

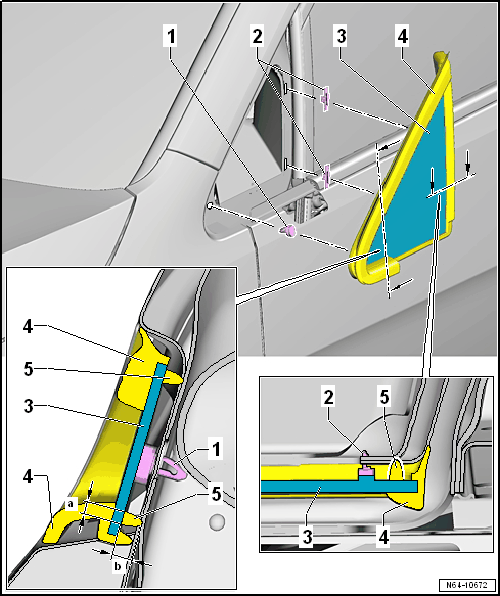

Fig 1: Exploded View Of Front Side Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Centering Clip
Clip
- Quantity: 2
Side Window
- Removing and Installing. Refer to FRONT SIDE WINDOW, REMOVING AND INSTALLING .
Seal
- Front side window component
PUR Adhesive Sealant
- Bead diameter: width = 6.5 mm dimension -a-, height = 10 mm dimension -b- (including residual material on window glass and window glass flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
