Overview - Door Components

NOTE:

The illustration shows the left side. The right side is done the same.

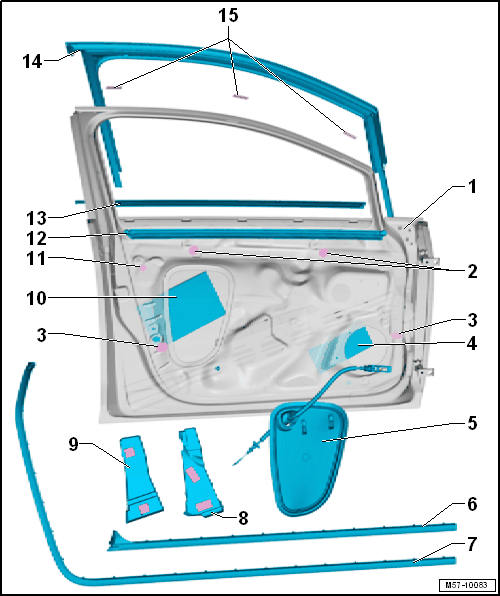

Fig 1: Exploded View Of Door Components
GWWM57-10083Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Door
  2. Sticker
    • 28 mm diameter
    • Use commercially available duct tape if needed
  3. Sticker
    • 32 mm diameter
    • Use commercially available duct tape if needed
  4. Insulation
    • self-adhesive
    • Installing:

      -- Cut to size if necessary, 200 mm x 100 mm. Position as shown in the image.

      -- Warm using the Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A  and then press firmly onto the outer door panel.

  5. Door Inner Cover
  6. Outer Door Seal
  7. Outer Door Seal
  8. Inner Exterior Padding
  9. Outer Exterior Padding
  10. Insulation
    • self-adhesive
    • Installing:

      -- Cut to size if necessary, 250 mm x 160 mm. Position as shown in the image.

      -- Warm using the Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A  and then press firmly onto the outer door panel.

  11. Sticker
    • 19 mm diameter
    • Use commercially available duct tape if needed
  12. Inner Window Shaft Strip
  13. Outer Window Shaft Strip
  14. Window Guide
  15. Sticker
    • Quantity: 3 for 4-door
    • Quantity: 4 for 2-door
    • 15 mm x 50 mm
    • Use commercially available duct tape if needed
