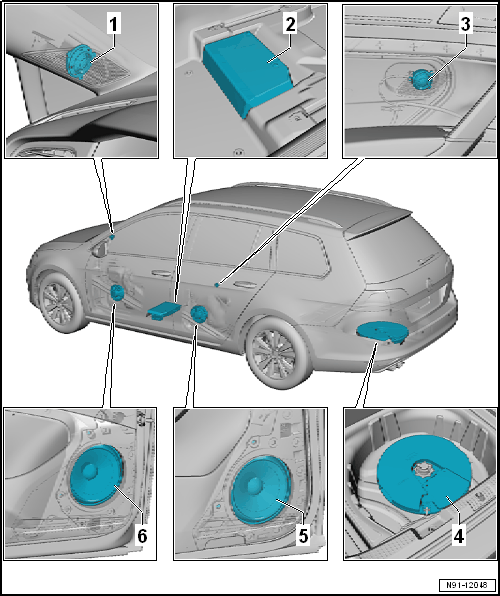

Component Location Overview - Sound System
NOTE:
The component locations for the wagon are shown. The component locations for the Sedan are identical.
- Front Treble Speaker
- Left Front Treble Speaker -R20-
- Right Front Treble Speaker -R22-
- In the A-pillar upper trim panel
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Rear Treble Speaker
- Left Rear Treble Speaker -R14-
- Right Rear Treble Speaker -R16-
- 2-door: in the side trim panels
- 4-door: in the door trim panels
- Removing and installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
- Subwoofer -R211-
- In the spare wheel well
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Rear Bass Speaker
- Left Rear Bass Speaker -R15-
- Right Rear Bass Speaker -R17-
- 2-door: in the sidewalls
- 4-door: in the rear doors
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
- Front Bass Speaker
- Left Front Bass Speaker -R21-
- Right Front Bass Speaker -R23-
- In the front doors
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
