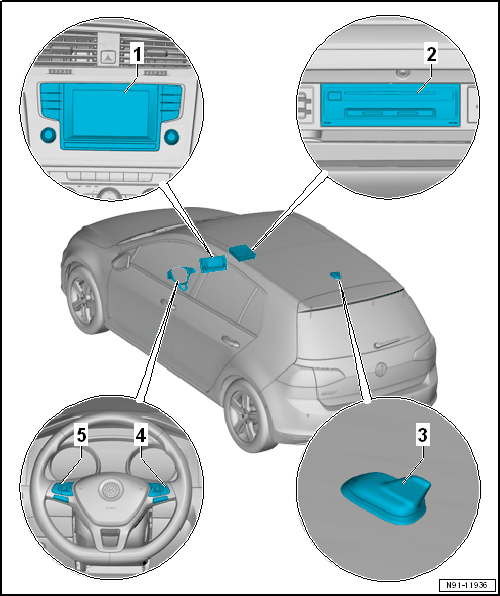

Component Location Overview - Navigation System
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- GPS Antenna -R50-
- In the Roof Antenna -RX5-
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Left Multifunction Buttons on Steering Wheel -E440-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
