Overview - Front Level Control System Sensor

NOTE:

A replacement Left Front Level Control System Sensor -G78- /Right Front Level Control Sensor -G289- only comes complete with the coupling rod and the upper and lower retaining plate.

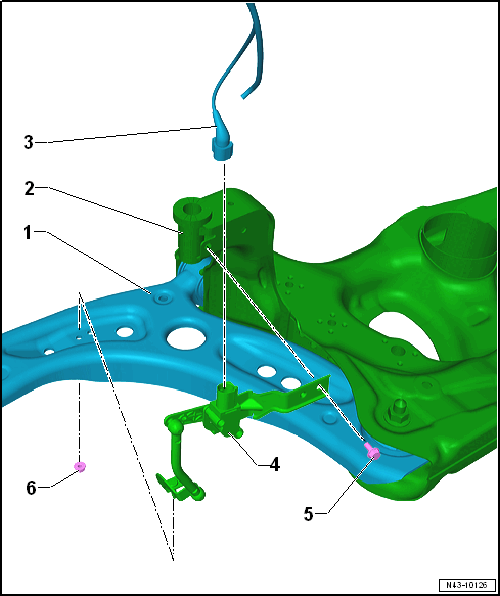

Fig 1: Exploded View Of Front Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Control Arm
Subframe
Connector
Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289-
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Perform a basic setting. Refer to Vehicle Diagnostic Tester.
Bolt
- 8 Nm
Nut
- 8 Nm
- Replace after removal
