Inner Window Shaft Strip, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

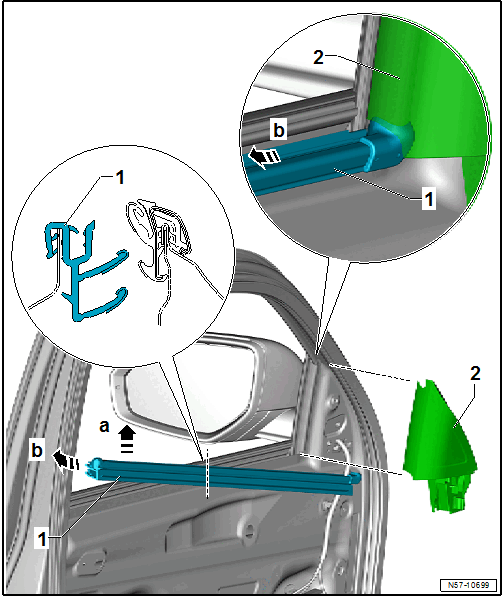

-- Pry the inner window shaft strip -1- evenly and without bending slightly from the flange -a arrows-.

-- Pull the inner window shaft strip -1- under the trim -arrow b-.
