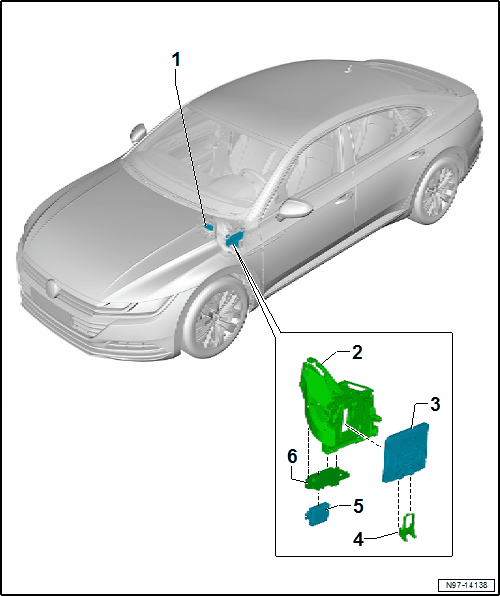

Component Location Overview - Control Modules

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Data Bus on Board Diagnostic Interface -J533-
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
2. Bracket for Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
3. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
4. Guide for the Center Connector
5. Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
   • Overview of the Parking Aid Control Module -J446- / Parallel Parking Assistance Control Module -J791-. Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING .
6. Bracket for the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
