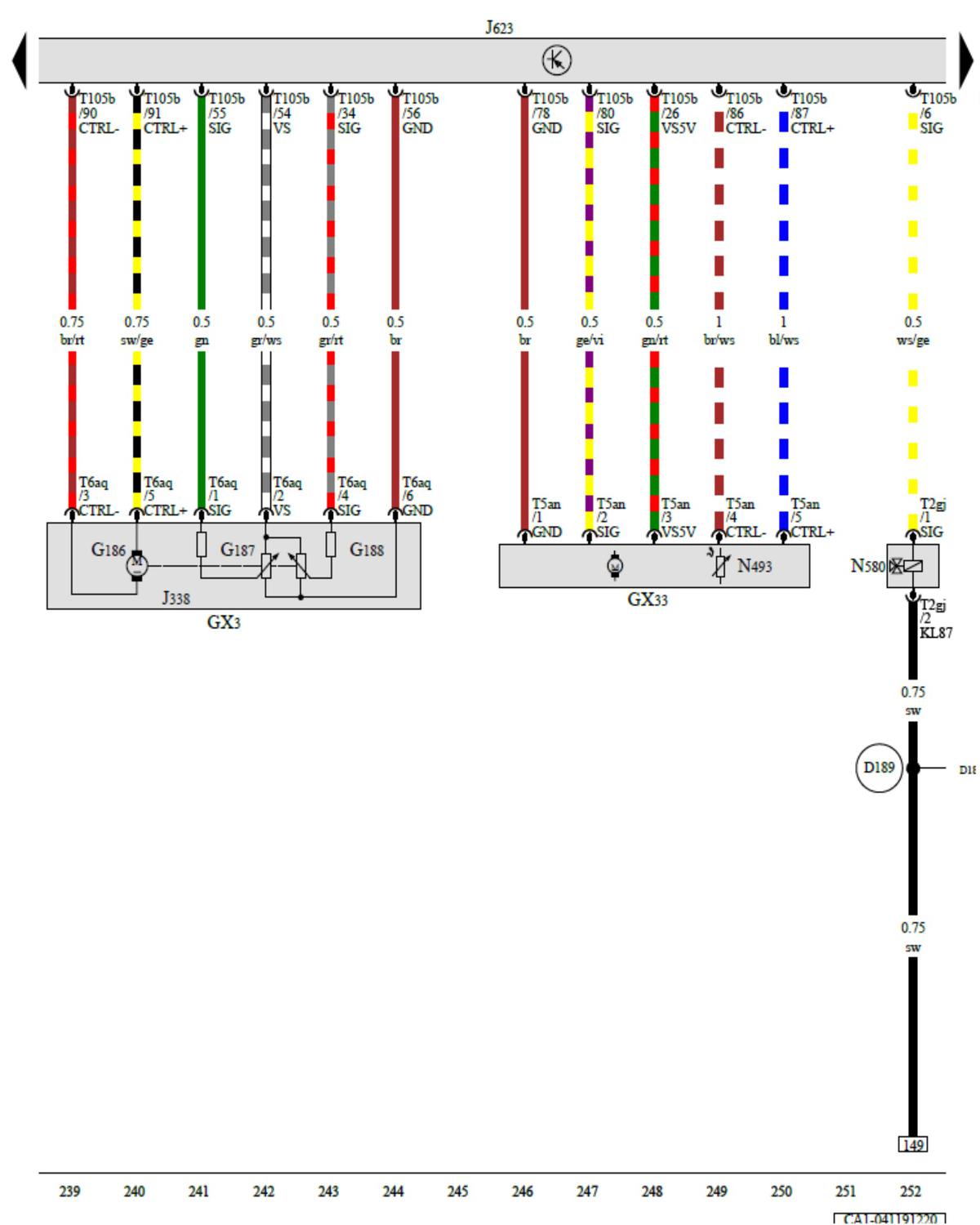

Throttle Valve Control Module, Engine Temperature Control Module, Engine/Motor Control Module, Cylinder 1 Exhaust Cam Actuator A: Notes

GWWCA1-041181217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
