Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

NOTE:

For reasons of clarity, the steering wheel is not illustrated.

-- Remove the Instrument Cluster -KX2-. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .

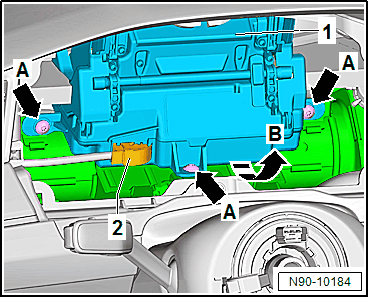

-- Release and disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -A arrows-.

-- Pivot the windshield projection control module out of the instrument panel in the direction of the -arrow B-.
