Engine Mount, Removing And Installing: Notes

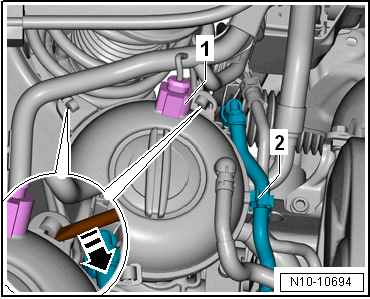

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the hoses -2-.

-- Release the retainers with a screwdriver in direction of -arrow- and move the coolant expansion tank to the side.

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

-- Remove the bolts -arrows- and engine mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
