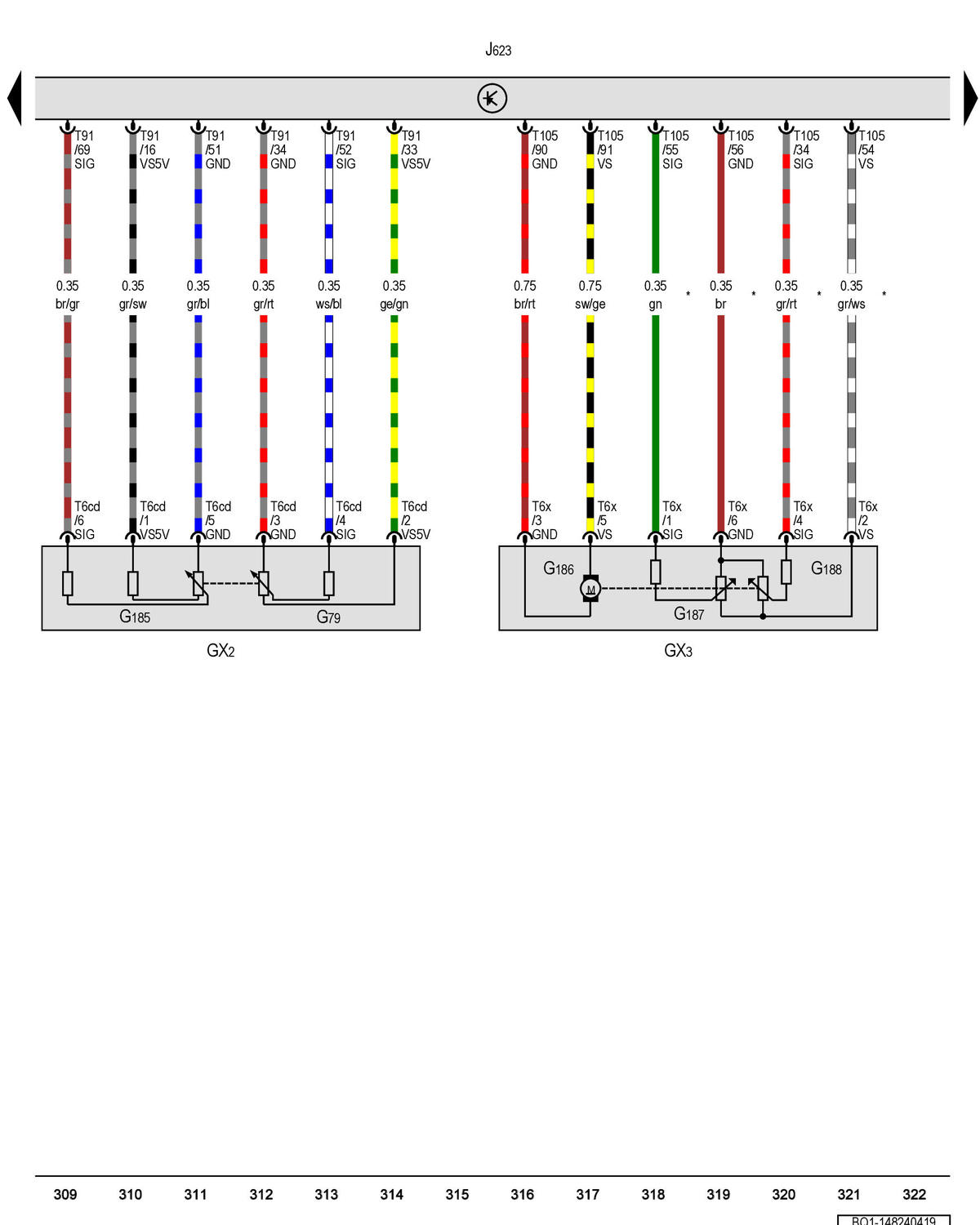

Accelerator Pedal Module, Throttle Valve Control Module, Engine/Motor Control Module: Notes

GWWBQ1-148240419

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
