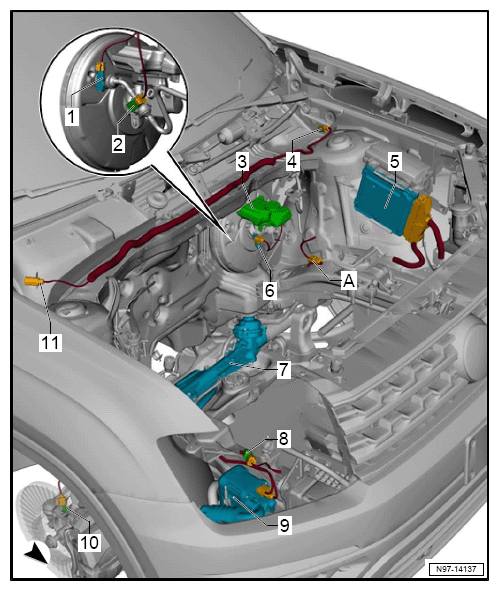

Vehicle Front, Right View
- A - 6-Pin Connector -T6I-, Black/6-Pin Connector -T6U-, Black
- 1
- Vacuum Sensor -G608-
- Only For Vehicles With 2.0L Gasoline Engine
- For Vehicles With 3.6L Gasoline Engine See → Item 2
- 2
- Vacuum Sensor -G608-
- Only For Vehicles With 3.6L Gasoline Engine
- For Vehicles With 2.0L Gasoline Engine See → Item 1
- 3 - Brake Fluid Level Warning Switch -F34-
- 4
- Windshield Defogger -Z2-
- Left Connection
- Right Connection → Item 11
- 5 - Engine Control Module -J623-
- 6 - Brake Lamp Switch -F-
- 7 - Power Steering Control Module -J500-
- 8 - Refrigerant Circuit Pressure Sensor -G805-
- 9 - Auxiliary Heater Control Module -J364-
- 10 - Right Front Abs Wheel Speed Sensor -G45-
- 11
- Windshield Defogger -Z2-
- Right Connection
- Left Connection → Item 4
Return To Overview → COMPONENTS INDEX
