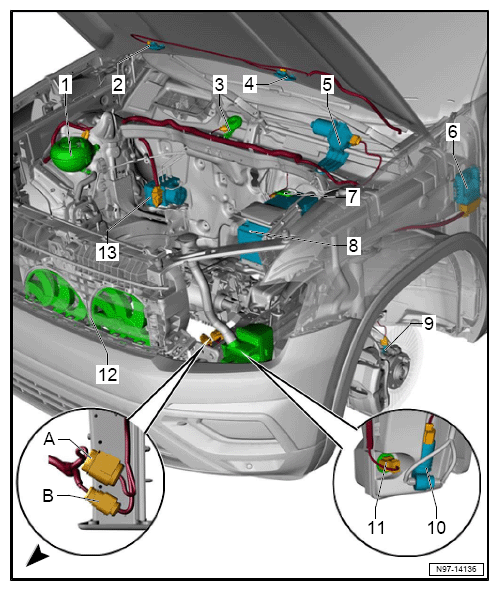

Vehicle Front, Left View

A - 14-Pin Connector -T14O-, Gray/14-Pin Connector -T14T-, Gray
B - 4-Pin Connector -T4BR-, Black/4-Pin Connector -T4CJ-, Black
1 - Engine Coolant Level Sensor -G32-
2 - Right Washer Nozzle Heater -Z21-
3 - Anti-Theft Alarm System Horn -H8-
4 - Left Washer Nozzle Heater -Z20-
5 - Windshield Wiper Motor -V-
- Wiper Motor Control Module -J400-
- Driver Windshield Wiper Motor -V216-
6 - Transmission Control Module -J217-
7 - Battery Monitoring Control Module -J367-
8 - Battery -A-
9 - Left Front ABS Wheel Speed Sensor -G47-
10 - Windshield And Rear Window Washer Pump -V59-
11 - Windshield Washer Fluid Level Sensor -G33-
12 - Radiator Fan -VX57-
- Radiator Fan Control Module -J293-
- Radiator Fan 2 -V177-
13 - ABS Control Module -J104-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
