Overview - Control Module And Hydraulic Unit, RHD

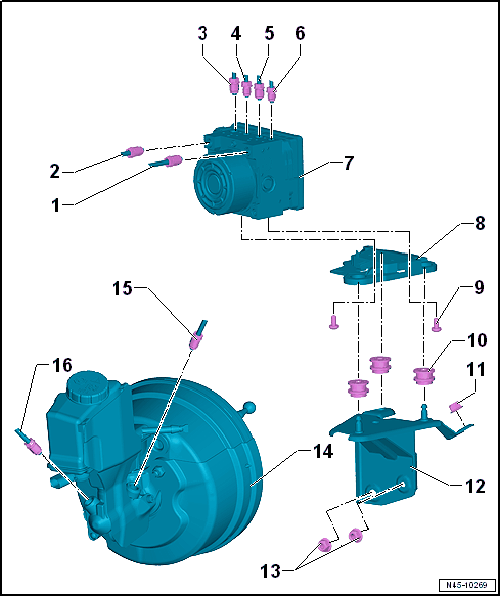

Fig 1: Exploded View Of Control Module And Hydraulic Unit, RHD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Brake Line
   • Brake master cylinder/secondary piston circuit to hydraulic unit
   • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
2. Brake Line
   • Brake master cylinder/primary piston circuit to hydraulic unit
   • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
3. Brake Line
   • To the right rear brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
4. Brake Line
   • To the left front brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
5. Brake Line
   • To the right front brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
6. Brake Line
   • To the left rear brake caliper
   • Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
   • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
   • With standard tool: 14 Nm
   • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
7. ABS Hydraulic Unit -N55- with ABS Control Module -J104-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW .
   • Removing and installing. Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT .
   • ABS Control Module -J104-, Disconnecting from ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT .
   • ABS Control Module -J104-, Installing on ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT .
   • Connecting the brake lines. Refer to BRAKE LINES, ATTACHING TO HYDRAULIC UNIT, RHD .
8. Bracket
   • After installing, heck for secure fit
9. Bolt
   • Quantity: 2
   • 8 Nm
10. Rubber Bushing
    • Quantity: 3
11. Nut
    • 20 Nm
12. Bracket
13. Nut
    • Quantity: 2
    • 20 Nm
14. Brake Booster with Master Brake Cylinder
    • Overview - Brake Booster/Brake Master Cylinder. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER .
    • Brake Booster, Checking. Refer to VACUUM SYSTEM, CHECKING .
    • Brake Booster, Removing and Installing, Vehicles with Gasoline Engine. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING, RHD, GASOLINE ENGINE .
    • Brake master cylinder, removing and installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING, RHD VEHICLES .
15. Brake Line
    • Brake master cylinder/primary piston circuit to hydraulic unit
    • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
    • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
    • With standard tool: 14 Nm
    • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
16. Brake Line
    • Brake master cylinder/secondary piston circuit to hydraulic unit
    • Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
    • Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
    • With standard tool: 14 Nm
    • With special tools VAS6854 (Mini Torque Wrench), VAG 1410/7 (Torque Wrench - Universal Joint) and VAG 1410/6 (Open Ring Spanner Insert - AF 11mm): 12 Nm
