Knock Sensor 1 -G61-, Removing And Installing: Removing

-- Disconnect the connector -2- from the Knock Sensor 1 -G61-.

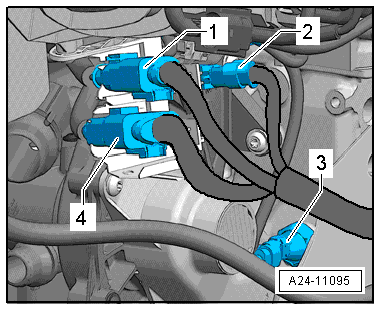

Fig 1: Locating Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine Temperature Control Actuator -N493-. Refer to Engine Temperature Control Actuator -N493-, REMOVING AND INSTALLING .

NOTE:

The Knock Sensor 1 -G61- is located below the intake manifold behind the coolant pump.

-- Remove the Knock Sensor 1 -G61- -arrow-.

Fig 2: Locating Knock Sensor Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
