Home >> Volkswagen >> 2018 >> Passat R-Line >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locations >> Comp. LOC.: Vehicle Front >> Transmission >> Auto. Trans., 09G

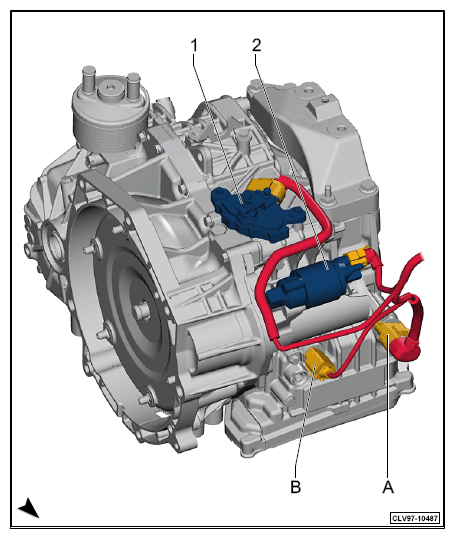

Auto. Trans., 09G

  1. Multifunction Transmission Range Switch -F125-
  2. Starter -B-
  1. 14-Pin Connector -T14E-
  2. 8-Pin Connector -T8-
    G12750580Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
