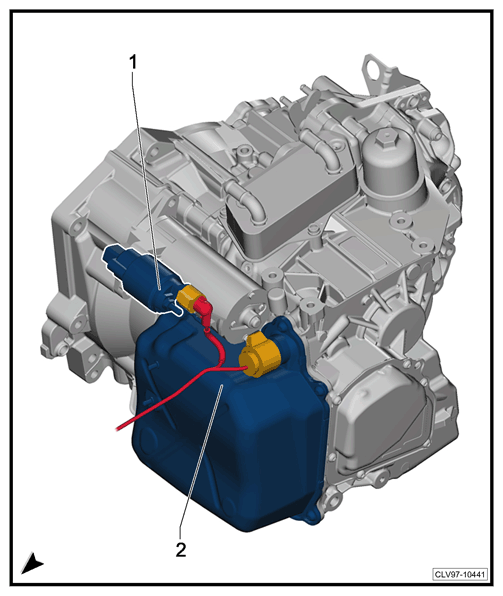

Auto. Trans., 02E

  1. 1  - Starter -B-
  2. 2  - DSG Transmission Mechatronic -J743-
  3. 2  - Transmission Input Speed Sensor -G182-
    • Behind Mechatronic
  4. 2  - Clutch Oil Temperature Sensor -G509-
    • Behind Mechatronic
    G12751099Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
