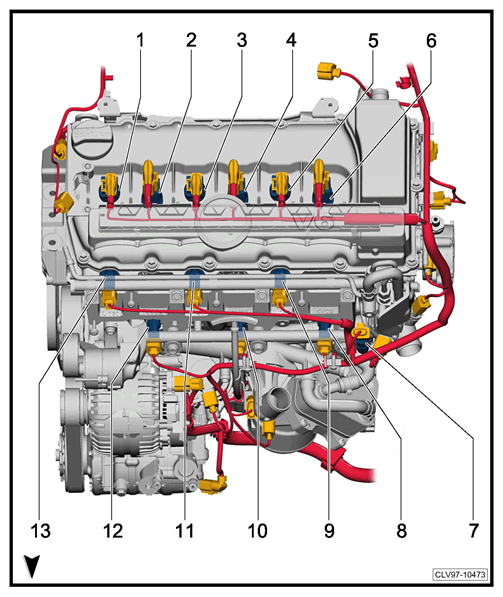

3.6L FSI, CDVB Top

  1. Ignition Coil 1 With Power Output Stage -N70-
  2. Ignition Coil 2 With Power Output Stage -N127-
  3. Ignition Coil 3 With Power Output Stage -N291-
  4. Ignition Coil 4 With Power Output Stage -N292-
  5. Ignition Coil 5 With Power Output Stage -N323-
  6. Ignition Coil 6 With Power Output Stage -N324-
  7. Fuel Pressure Sensor -G247-
  8. Cylinder 6 Fuel Injector -N84-
  9. Cylinder 5 Fuel Injector -N83-
  10. Cylinder 4 Fuel Injector -N33-
  11. Cylinder 3 Fuel Injector -N32-
  12. Cylinder 2 Fuel Injector -N31-
  13. Cylinder 1 Fuel Injector -N30-
    G12751092Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
