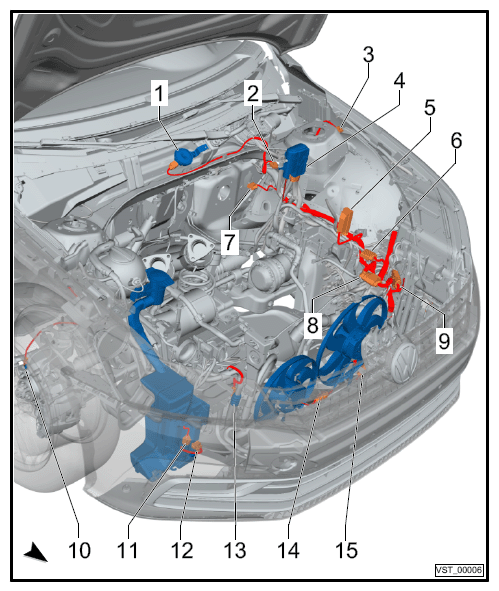

Engine Compartment, Right Part II

1 -Alarm horn -H12-
2 - Mass airflow sensor - G70-
- Only for vehicles with 3, 6L FSI
- For Vehicles with 1, 8L TFSI → Item 3 (page 19)
3 - Mass airflow sensor - G70-
- Only for vehicles with 1, 8L TFSI
- For Vehicles with 3, 6L FSI → 2 - Mass airflow sensor - G70-
4 - Remote start connection -TV32-
Battery Jump Start Terminal -U6-
4 - Suppressor -C24-
4 - Terminal 30 wire junction -TV2-
5 - Transmission control module -J217-
- Only for vehicles with DSG transmission
- Fitting location for vehicles with automatic transmission (not for DSG) → 6 - Transmission control module -J217-
6 - 14-pin connector -T14-
- Only for vehicles with China equipment
7 - Clutch position sensor -G476-
8 - 14-pin connector -T14-
- For Vehicles With China Equipment Use → 6 - 14-pin connector -T14-
9 - 10-pin connector -T10G-
10 - Right front ABS wheel speed sensor -G45-
11 - Windshield washer pump -V5-
12 - Windshield washer fluid level sensor -G33-
13 - Engine coolant temperature sensor on radiator outlet -G83-
14 - Radiator fan 2 -V177-
- For Vehicles With One Radiator Fan → Item 15 (Page 19)
15 - Radiator fan -VX57-
