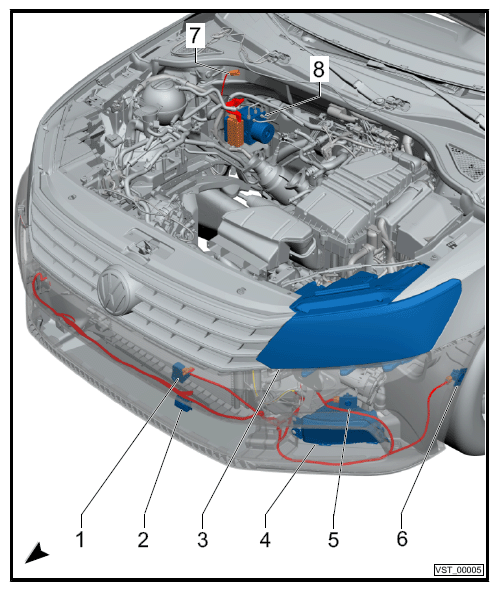

Engine Compartment, Left Part I

  1. Outside Air Temperature Sensor -G17-
  2. Left Front Center Parking Aid Sensor -G254-
  3. Left Front Headlamp -MX1-
    • Left Daytime Running Lamp And Position Lamp Control Module -J860-
  4. Left Fog Lamp -MX11-
  5. Left Front Parking Aid Sensor -G255-
  6. Left Front Parallel Parking Assistance Sensor -G568-
  7. Reducing Agent Injector -N474-
  8. ABS Control Module -J104-
    G12756550Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
