Selector Lever Cable, Checking And Adjusting

-- Read and follow the High-Voltage Vehicle Electrical System General Warnings. Refer to SAFETY PRECAUTIONS .

-- Pay attention to the High-Voltage System Danger Classification. Refer to [For engine(s) EAZA] High-Voltage System Danger Classification .

CAUTION:

Extremely dangerous due to high-voltage.

Electrocution can cause death or severe bodily injury.

- Have the high-voltage system de-energized by qualified personnel.

-- Disable the high-voltage system. Refer to HIGH-VOLTAGE SYSTEM, DE-ENERGIZING .

Checking the Selector Lever Cable, Brief Description

The cable must be disconnected from the transmission in order to check it for ease of movement. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .

-- Lay the removed end down so that it does not touch anything.

Then the selector lever is moved and the cable is installed again on the transmission.

Do not lubricate the cable connections.

The selector lever must be adjusted after that.

Always Adjust the Selector Lever Cable If:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

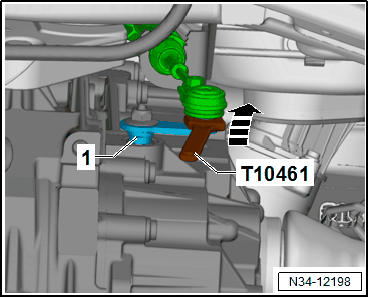

-- Pry off the selector lever cable from the parking lock lever -1- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

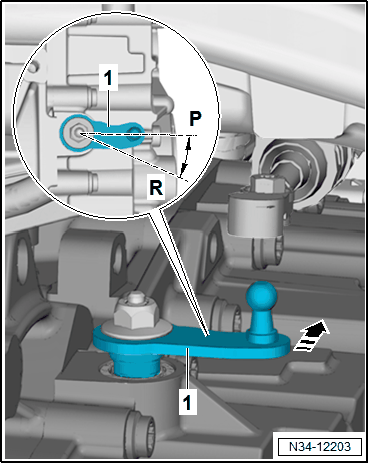

Check the Parking Lock Lever -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the parking lock lever in >>P<< direction of -arrow-.

-- Move the parking lock lever from >>P<< to >>R<< and back to >>P<< multiple times.

Adjusting

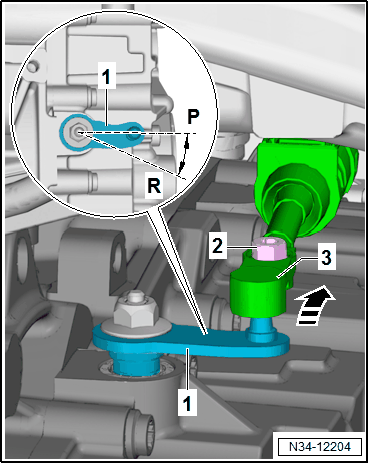

On the parking lock lever -1- the adjusting screw -2- is loosened and the cable -3- is installed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the selector lever into "P".

Push the Parking Lock Lever -1- on the Transmission in "P" in the Direction of -arrow-.

-- To do this push the parking lock lever -1- >>completely to the bulkhead<<.

"P" is in the Last Detent.

NOTE:

On some transmissions the parking lock lever can be pushed slightly past "P" where the lever can engage.

Then push the parking lock lever back into "P", tap slightly allowing it to jump back into "P".

Verification: "P" - position is parallel to the motor/transmission housing threaded connection.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Raise the vehicle to make sure the transmission is in "P" (parking lock is engaged). The front wheels must not turn together in any direction.

The transmission is also in "P" if the vehicle does not move with wheels spinning freely.

For "P" it is the First Detent after "R". If "P" both Front Wheels cannot be Turned Together in One Direction.

-- Tighten adjustment screw -2- to the tightening specification.

Tightening Specification
