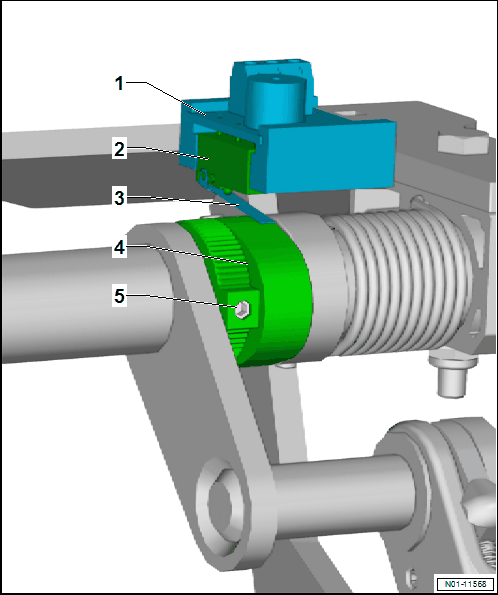

Overview - Control Equipment Buzzer, Golf SPORTSVAN

NOT APPLICABLE TO e-GOLF

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Housing with Switch and Buzzer for Control Equipment
   • Control Equipment Buzzer Adjusting. Refer to DRIVING SCHOOL PEDALS, ADJUSTING ACTIVATION TIMING FOR CONTROL EQUIPMENT WARNING BUZZER .
2. Switch
3. Vane for Operating the Switch Contacts
4. Adjustment Eccentric/Lobe
5. Clamping Screw on Adjustment Eccentric
   • 0.5 Nm
