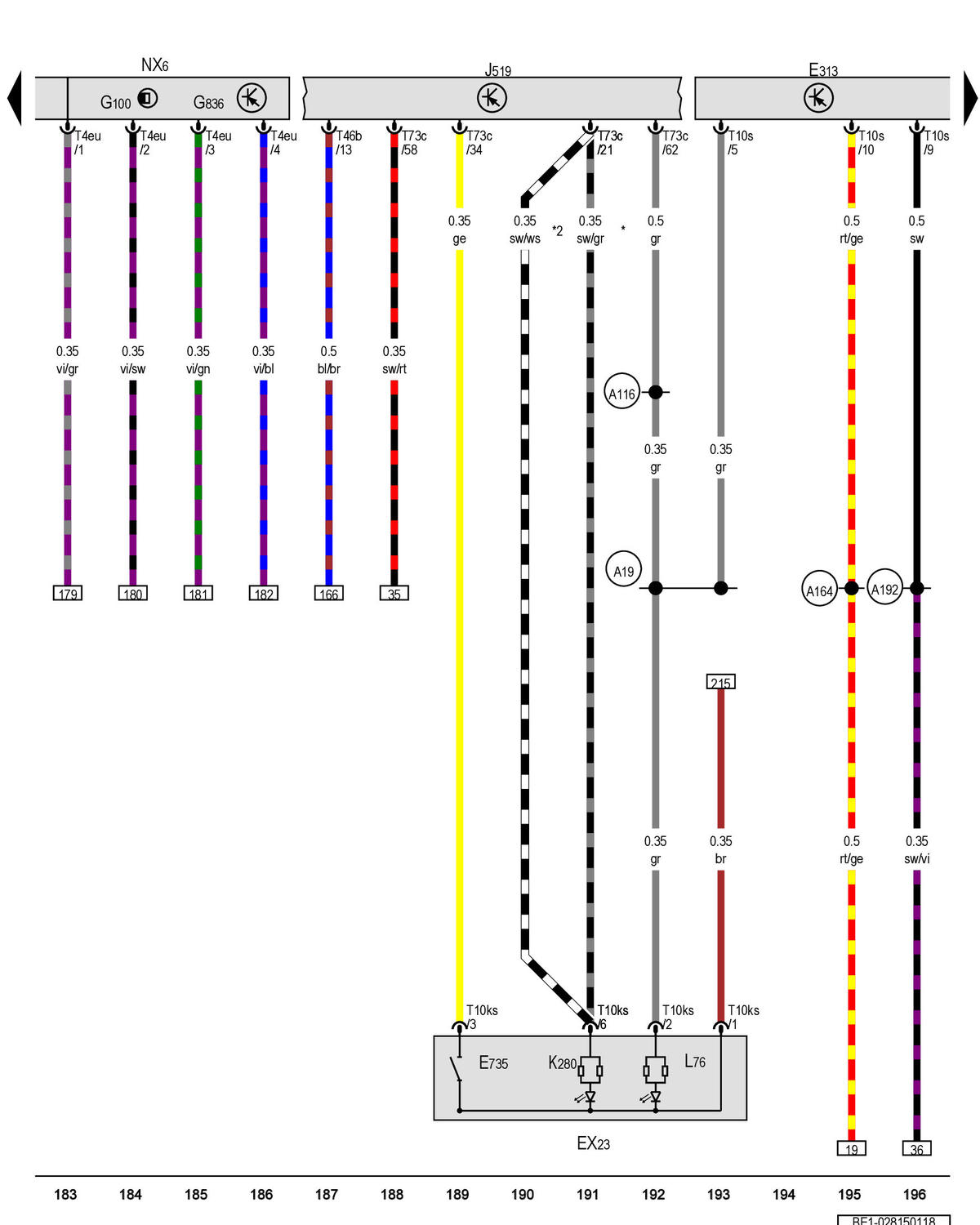

Center Console Switch Module 1, Selector Lever, Driving Profile Selection Button, Brake Pedal Position Sensor, Brake Pedal Position Sensor 2, Vehicle Electrical System Control Module, Brake Booster: Notes

GWWBE1-028150118
