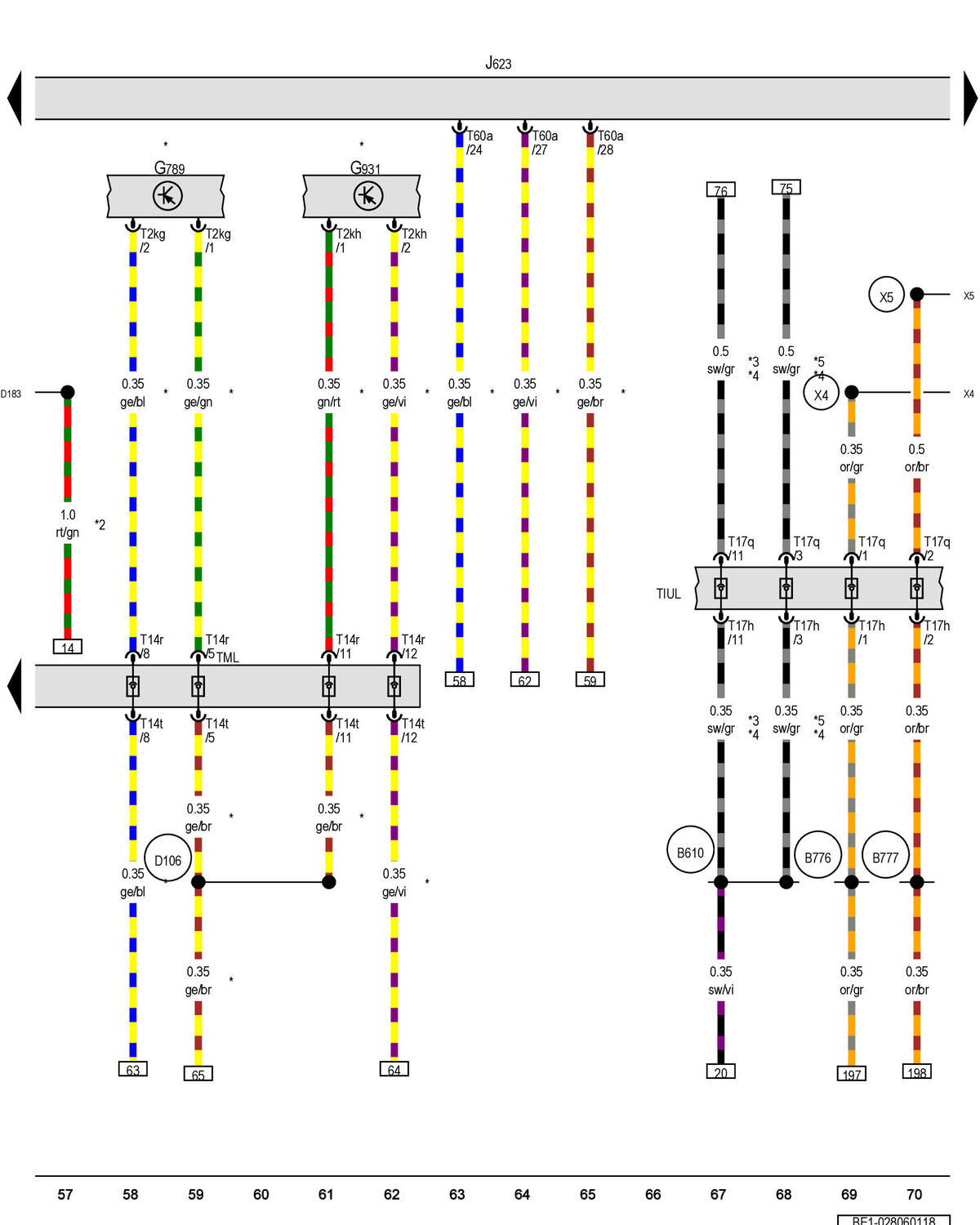

Temperature Sensor After Electric Drive Power And Control Electronics, Temperature Sensor Before Charger, Engine/Motor Control Module: Notes

GWWBE1-028060118
