Overview - Control Modules

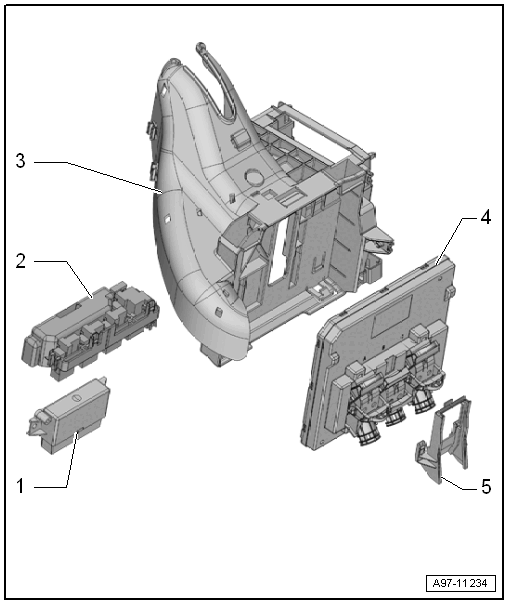

Fig 1: Control Modules Exploded View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Control Module
Equipment Levels with Parking Aid:
- Parking Aid Control Module -J446-
- Overview. Refer to OVERVIEW - PARKING AID .
  Equipment Levels with Parallel Parking Assistance:
- Parallel Parking Assistance Control Module -J791-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to Parking Aid Control Module -J446- / Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
Bracket
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519- BRACKET, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Guide
- For the center connector
