Control Module For Adaptive Cruise Control, Removing And Installing, Version 1: Removing

-- Remove the VW emblem from the radiator grille. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .

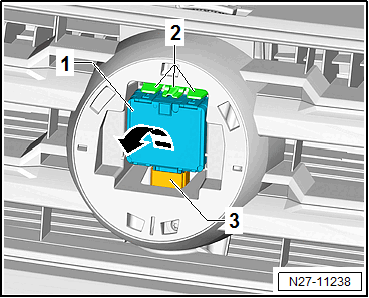

-- Release the tabs -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, pivot the Control Module for Adaptive Cruise Control -J428- -1- out of the radiator grille in the direction of -arrow-.

-- Release and disconnect the connector -3-.
