Overview - Control Modules, RHD

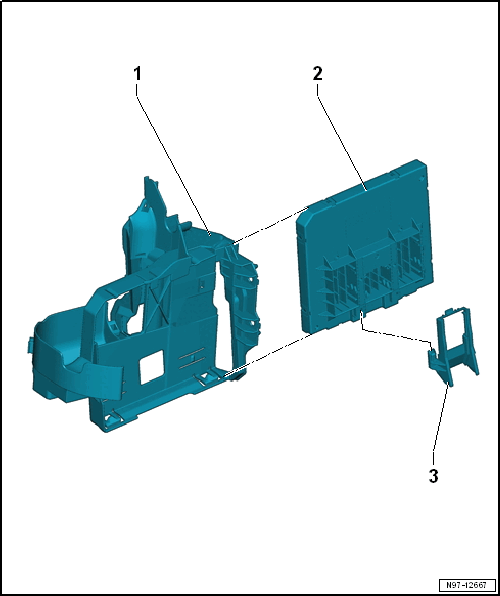

Fig 1: Exploded View Of Control Modules, RHD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519- BRACKET, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Guide
- For the center connector
- Depending on the vehicle equipment level
