Steering Gear, Electromechanical Steering Gear, Servicing
NOTE:
Currently, there is no service work to be performed on electromechanical steering gear.

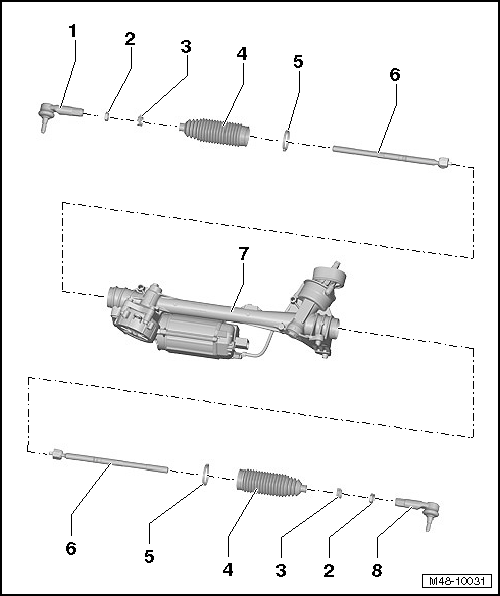

- Right Tie Rod End
- Identified with "A". Refer to Make Sure The Correct Tie Rod End Is Installed On Each Side.
- Removing and Installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
- Checking. Refer to TIE ROD END, CHECKING .
- Installed position. Refer to TIE ROD END ALLOCATION
- Allocation. Refer to the appropriate parts information.
- Nut
- 70 Nm
- Clamp
- Boot
- Must not be twisted after toe is adjusted
- Removing and Installing. Refer to BOOT, REMOVING AND INSTALLING .
- Clamp
- Always replace
- Tensioning. Refer to Boot, Mounting .
- Tie Rod
- 100 Nm
- Removing and Installing. Refer to TIE ROD, REMOVING AND INSTALLING .
- Power Steering Gear
- Allocation. Refer to the appropriate parts information.
- Removing and Installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
- Left Tie Rod End
- Identified with "B". Refer to Make Sure The Correct Tie Rod End Is Installed On Each Side.
- Removing and Installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
- Checking. Refer to TIE ROD END, CHECKING .
- Installed position. Refer to TIE ROD END ALLOCATION
- Allocation. Refer to the appropriate parts information.
