Check Oil Level

-- Check the oil level.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

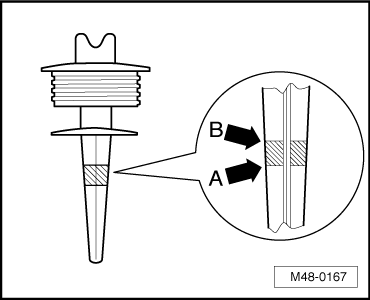

Oil level must be located between lowest marking -arrow A- and the highest marking -arrow B- of dipstick.

NOTE:

Fluid must be drawn off if the level is above the specified range.

If fluid level is below specified range, the hydraulic system must be checked for leaks. Refer to STEERING, CHECKING FOR LEAKS . It is not enough to just add fluid.

Do not use drained hydraulic oil.

-- If hydraulic system is properly sealed, fill hydraulic fluid.

-- Install the cap on the reservoir hand-tight.
