VEHICLES WITH ENGINE COMPARTMENT BATTERY, WITH Battery Monitoring Control Module -J367-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

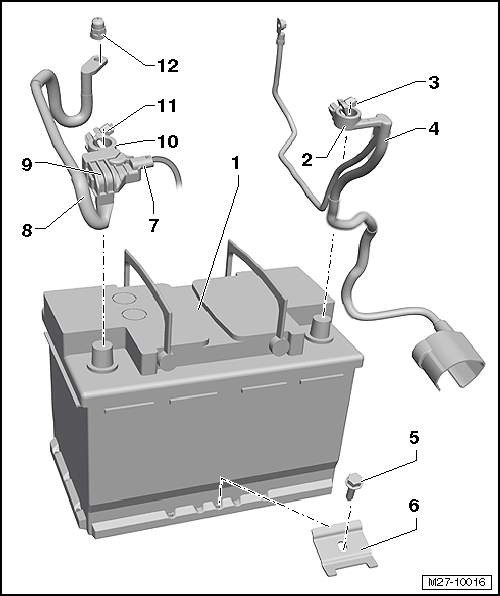

1. Battery
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
   • Removing and Installing. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING .
2. Battery Positive Cable Terminal Clamp
3. Nut
   • 6 Nm
4. Positive Cable
5. Bolt
   • 20 Nm
6. Clamping Plate
7. Connector
   • On Battery Monitoring Control Module -J367-
8. Ground Wire
9. Battery Monitoring Control Module -J367-
   • Replacing and Starting
   • Removing and installing
10. Battery Ground Cable Terminal Clamp
11. Nut
    • 6 Nm
12. Nut
    • 20 Nm
