OVERVIEW - BATTERY, WITHOUT Battery Monitoring Control Module -J367-

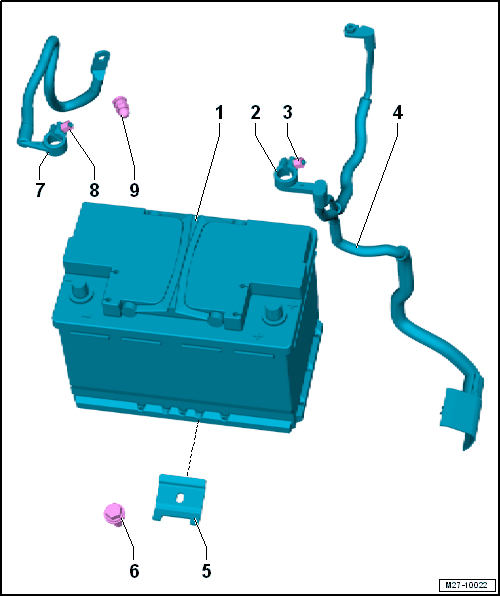

Fig 1: Exploded View Of Battery, Without Battery Monitoring Control Module -J367-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Battery
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
   • Removing and Installing. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING .
2. Battery Positive Cable Terminal Clamp
3. Nut
   • 6 Nm
4. Positive Cable
5. Clamping Plate
6. Bolt
   • 20 Nm
7. Battery Ground Cable Terminal Clamp
8. Nut
   • 6 Nm
9. Nut
   • 20 Nm
