Home >> Volkswagen >> 2017 >> Passat R-Line >> Repair and Diagnosis (Single Page) >> Transmission >> Transmission Control Systems >> Wiring Diagram (Engines: CPKA, CPRA - 1 Of 3) >> SLP Title >> Back-Up Switch, MULTIFUNCTION Transmission Range Switch, Transmission Control Module >> Notes

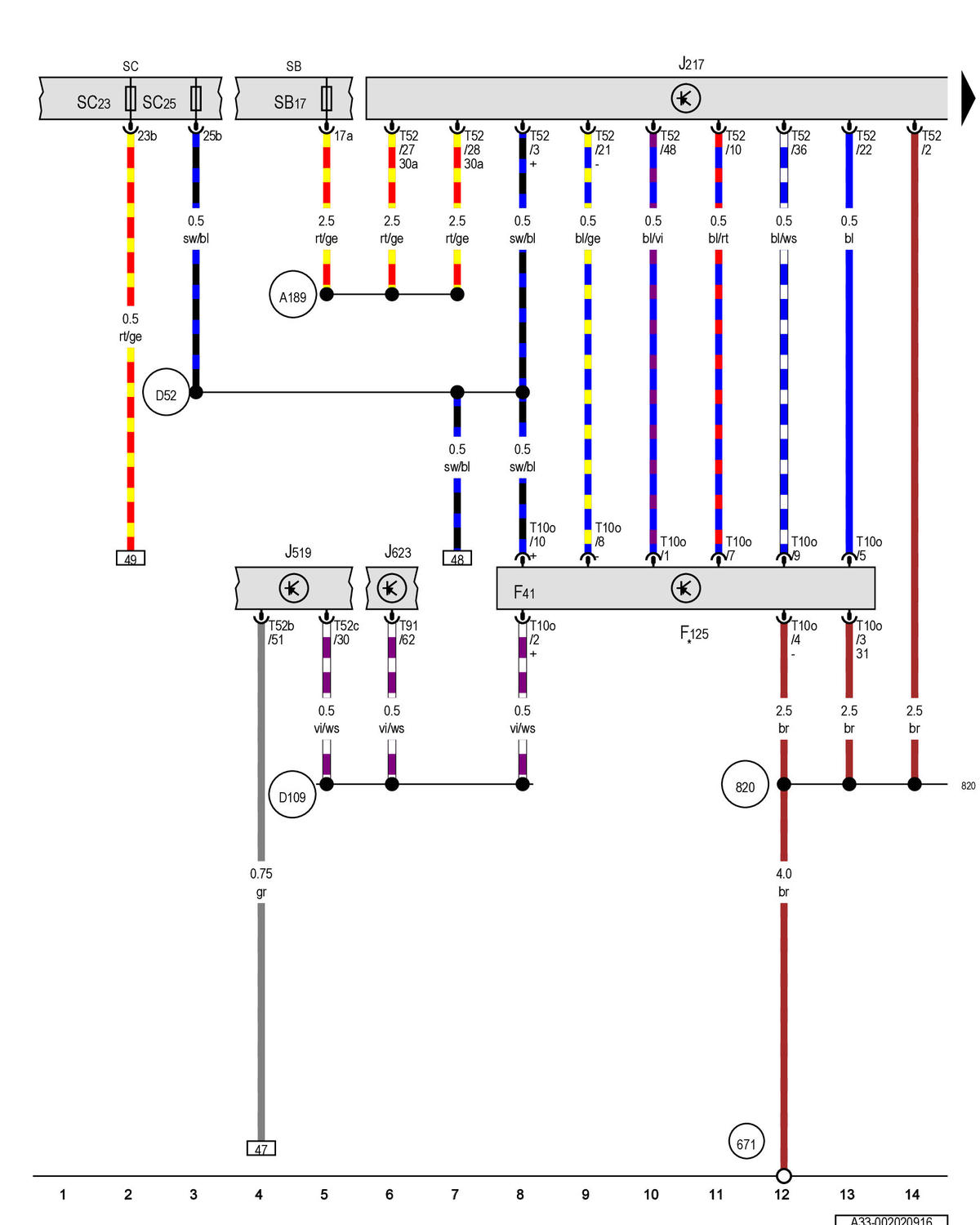

Back-Up Switch, MULTIFUNCTION Transmission Range Switch, Transmission Control Module: Notes

GWWA33-002020916

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
