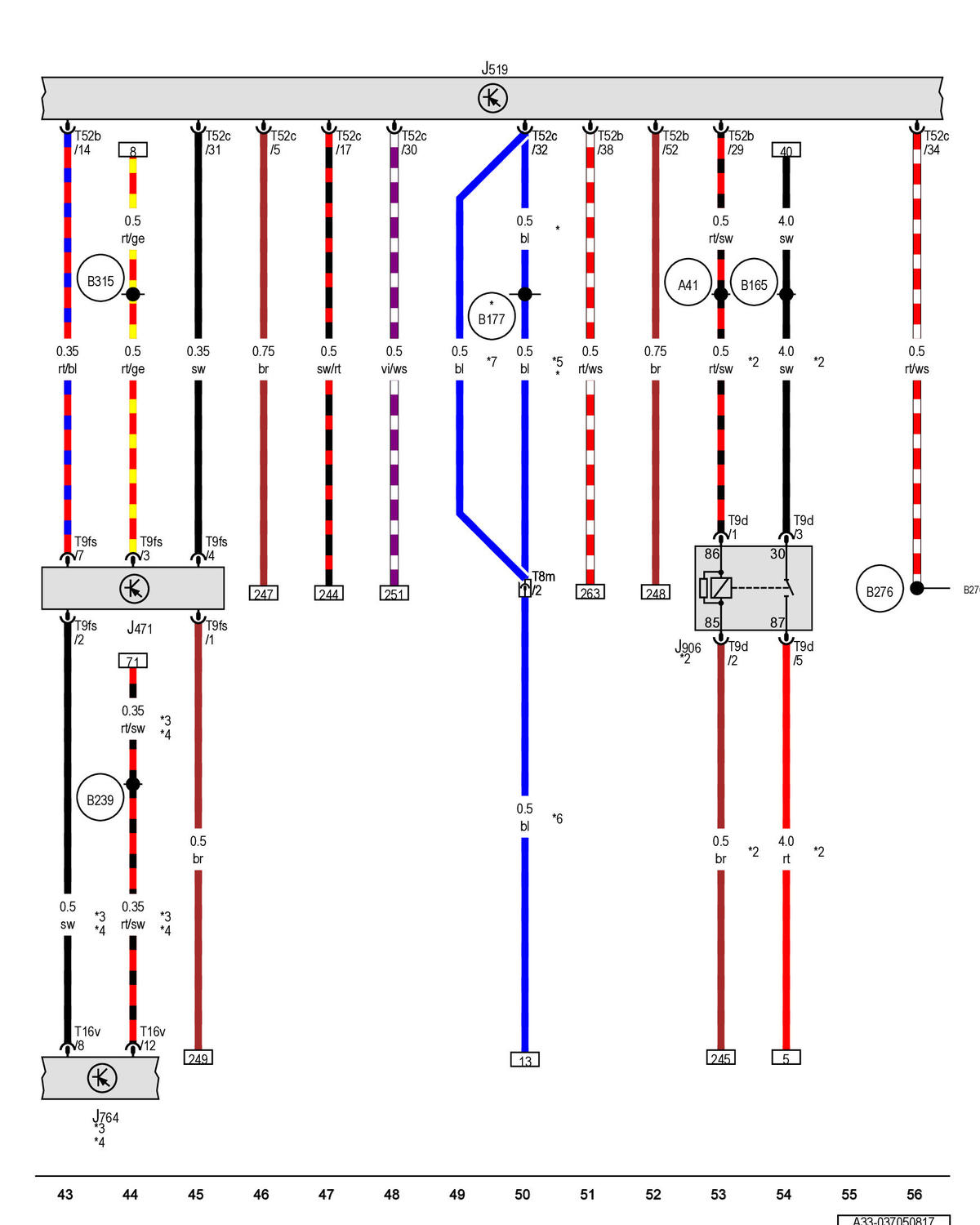

Remote Start System Relay, Vehicle Electrical System Control Module, Electronic Steering Column Lock Control Module, Starter Relay 1: Notes

GWWA33-037050817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
