Overview - Display Control Head, CLIMATRONIC

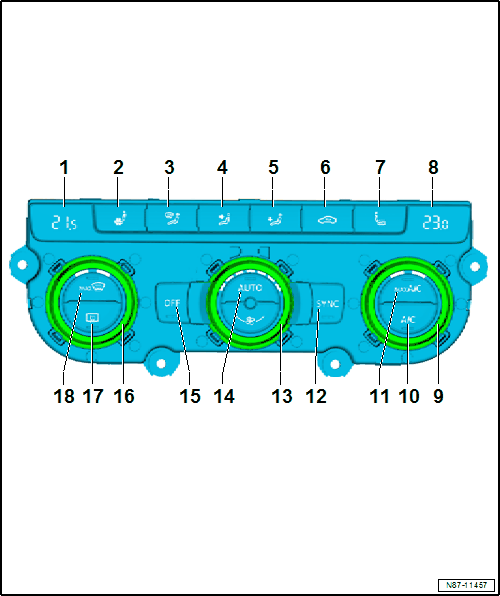

Fig 1: Exploded View Of - Display Control Head, Climatronic

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Temperature Display
   • Shows the set temperature for the driver side.
2. Left Seat Heating Button
   • The LED turns on when the system is active.
   • The seat heating has three settings. An LED indicates which setting is selected.
3. Windshield Air Distribution Button
   • The LED turns on when the system is active.
4. Center Air Distribution Button
   • Air distribution in the upper body above the center vents.
   • The LED turns on when the system is active.
5. Footwell Air Distribution Button
   • Air distribution into the footwell.
   • The LED turns on when the system is active.
6. Recirculation Mode Button
   • The LED turns on when the system is active.
   • Press the button for recirculating air function to prevent polluted air from entering interior.
7. Right Seat Heating Button
   • The LED turns on when the system is active.
   • The seat heating has three settings. An LED indicates which setting is selected.
8. Right Temperature Display
   • Shows the temperature set for the front passenger side
9. Right Temperature Control
   • The selected temperature will be shown in the display.
10. A/C  Button
    • The LED turns on when the system is active.
    • The A/C compressor is set to almost 0 delivery when the AC  button is off. If the AUTO  button is activated, the heating and ventilation mode continues to be controlled electronically.
11. MAX A/C  Button
    • The LED turns on when the system is active.
    • Run A/C system with MAX A/C.
12. Sync  Button
    • The LED turns on when the system is active.
    • Current driver side temperature control supersedes that of the front passenger side.
13. Blower Adjustment Knob
    • By turning the knob, the blower speed can be individually adjusted.
    • If the blower speed is manually adjusted, the function AUTO  is automatically deactivated.
14. AUTO  Button
    • The LED turns on when the system is active.
    • In automatic mode the Climatronic maintains the selected vehicle temperature automatically. The air temperature, the blower speed and the air distribution are adjusted automatically.
15. OFF  Button
    • Press the OFF  button to turn off the heater and A/C.
16. Left Thermostat Adjustment Knob
    • The selected temperature will be shown in the display.
17. Rear Window Defogger Button
    • The LED turns on when the system is active.
    • It only works when the engine is running and turns off on its own after 10 minutes.
18. Max Defrost Button
    • Air sucked in from the outside is directed to the windshield causing the recirculating air mode to shut off automatically.
    • In order to remove fog from front windshield quickly, the air temperature must be above 1.5 °C (+ 35 °F) and the blower must set to the highest speed.
