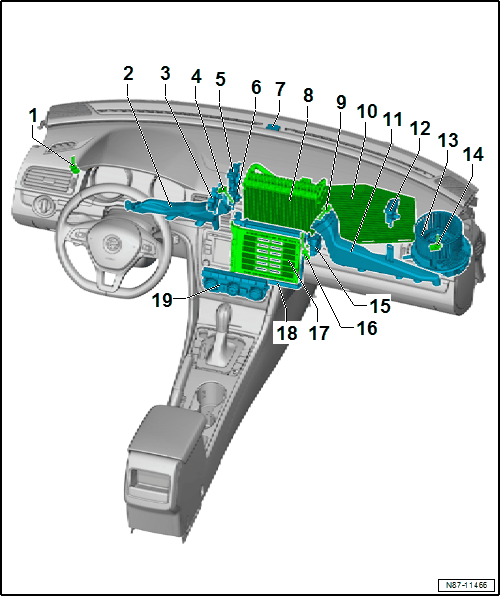

Component Location Overview - Components In Front Vehicle Interior

The image shows the Climatronic version.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Vent Temperature Sensor -G150-
   • Only for vehicles with Climatronic.
   • An incorrectly installed vent temperature sensor causes flow-generated noise.
   • To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram.
   • Removing and installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
2. Driver Side Footwell Vent
   • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
   • Removing and installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
3. Front Air Distribution Door Motor -V426- or Air Distribution Door Motor -V428-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
   • Removing and installing. Refer to Front Air Distribution Door Motor -V426-, REMOVING AND INSTALLING .
4. Left Footwell Vent Temperature Sensor -G261-
   • Only for vehicles with Climatronic.
   • To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram.
   • Removing and installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
5. Left Temperature Control Door Motor -V158- or Temperature Control Door Motor -V68-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
   • Removing and installing. Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
6. Defroster Door Motor -V107-
   • Only for vehicles with Climatronic.
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
   • Removing and installing. Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
7. Sunlight Photo Sensor -G107-
   • Only for vehicles with Climatronic.
   • Removing and installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
8. Evaporator
   • Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
9. Right Footwell Vent Temperature Sensor -G262-
   • Only for vehicles with Climatronic.
   • To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram .
   • Removing and installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
10. Dust and Pollen Filter
    • Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
11. Front Passenger Side Footwell Vent
    • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
    • Removing and installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
12. Recirculation Door Motor -V113- or Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
    • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
    • Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, Removing and installing. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
13. Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
    • Fresh Air Blower -V2-, removing and installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
    • Fresh Air Blower Control Module -J126-, removing and installing. Refer to Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
14. Right Vent Temperature Sensor -G151-
    • Only for vehicles with Climatronic.
    • An incorrectly installed vent temperature sensor causes flow-generated noise.
    • To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram .
    • Removing and installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
15. Right Temperature Control Door Motor -V159-
    • Only for vehicles with Climatronic.
    • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
    • Removing and installing. Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
16. Evaporator Temperature Sensor -G308-
    • To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to Wiring Diagram.
    • Removing and installing. Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
17. Auxiliary Heater Heating Element -Z35- with Auxiliary Heater Control Module -J604-
    • Removing and installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
18. Heater Core
    • Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
19. Display Control Head
    • Removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
