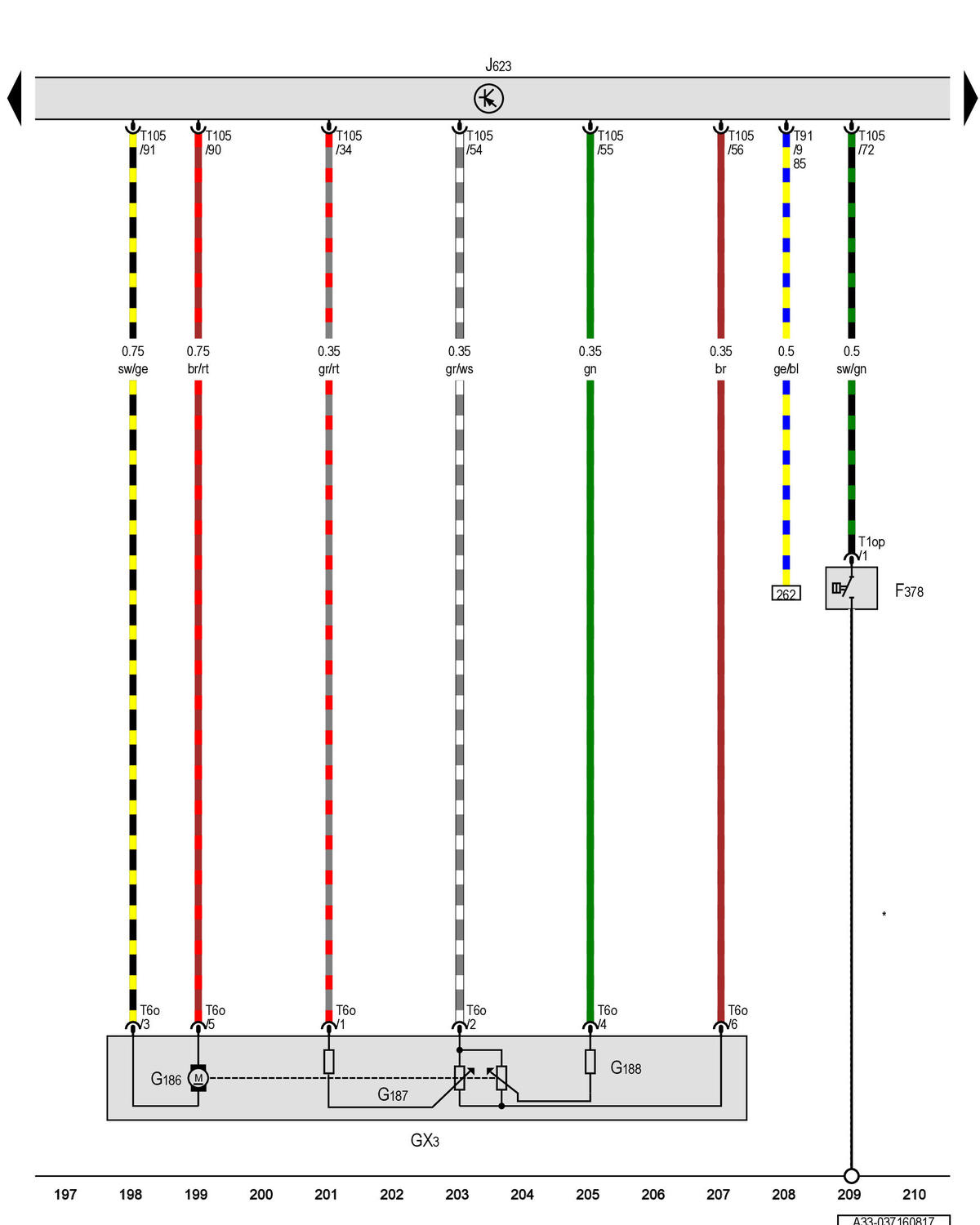

Reduced Oil Pressure Switch, Throttle Valve Control Module, EPC Throttle Drive, Engine/Motor Control Module: Notes

GWWA33-037160817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
