Wiring Diagram (Engines: CPKA, CPRA - 2 Of 3)
>>
SLP Title
>>

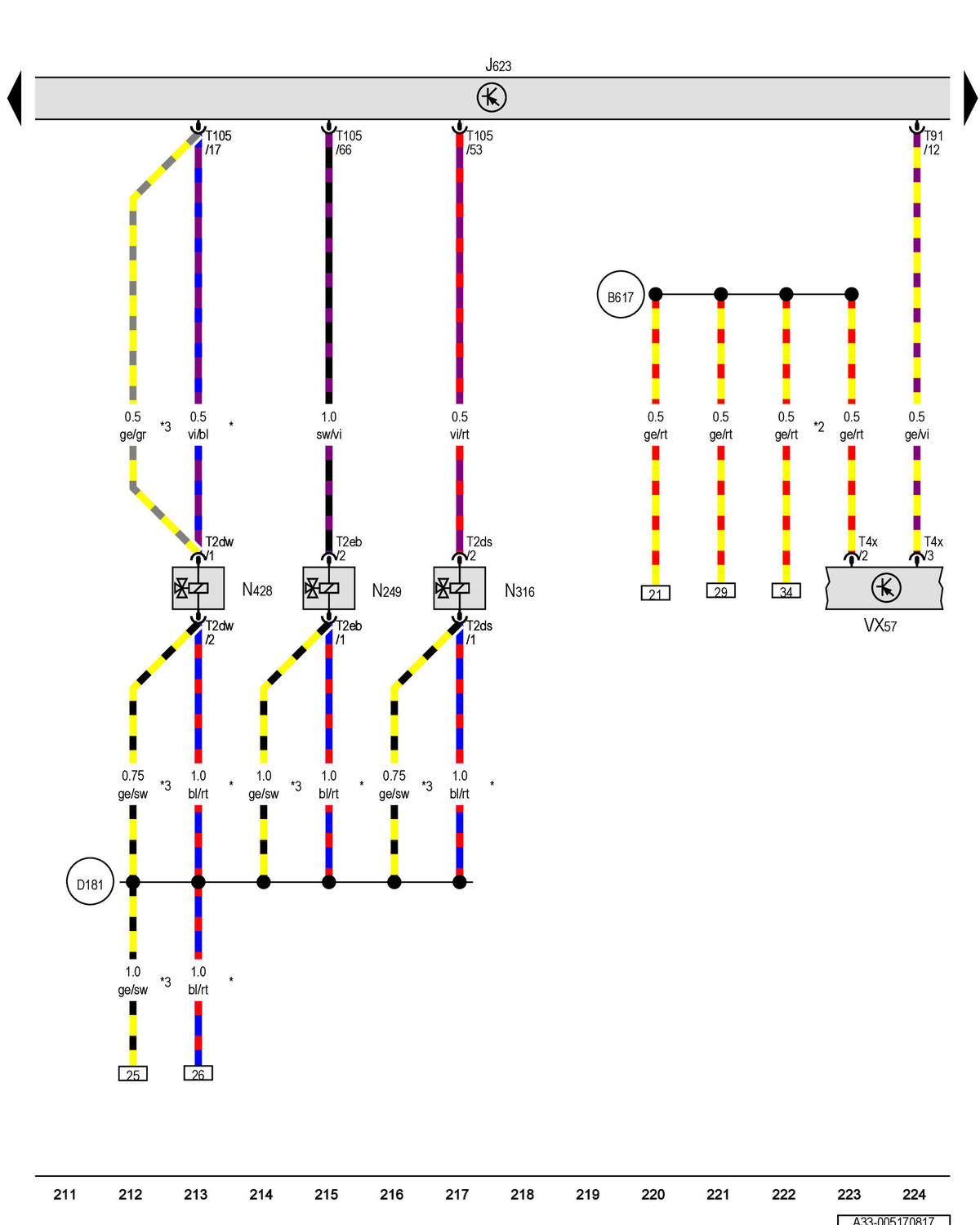

Engine/Motor Control Module, Turbocharger RECIRCULATION Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve
>>
Notes
Engine/Motor Control Module, Turbocharger RECIRCULATION Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
