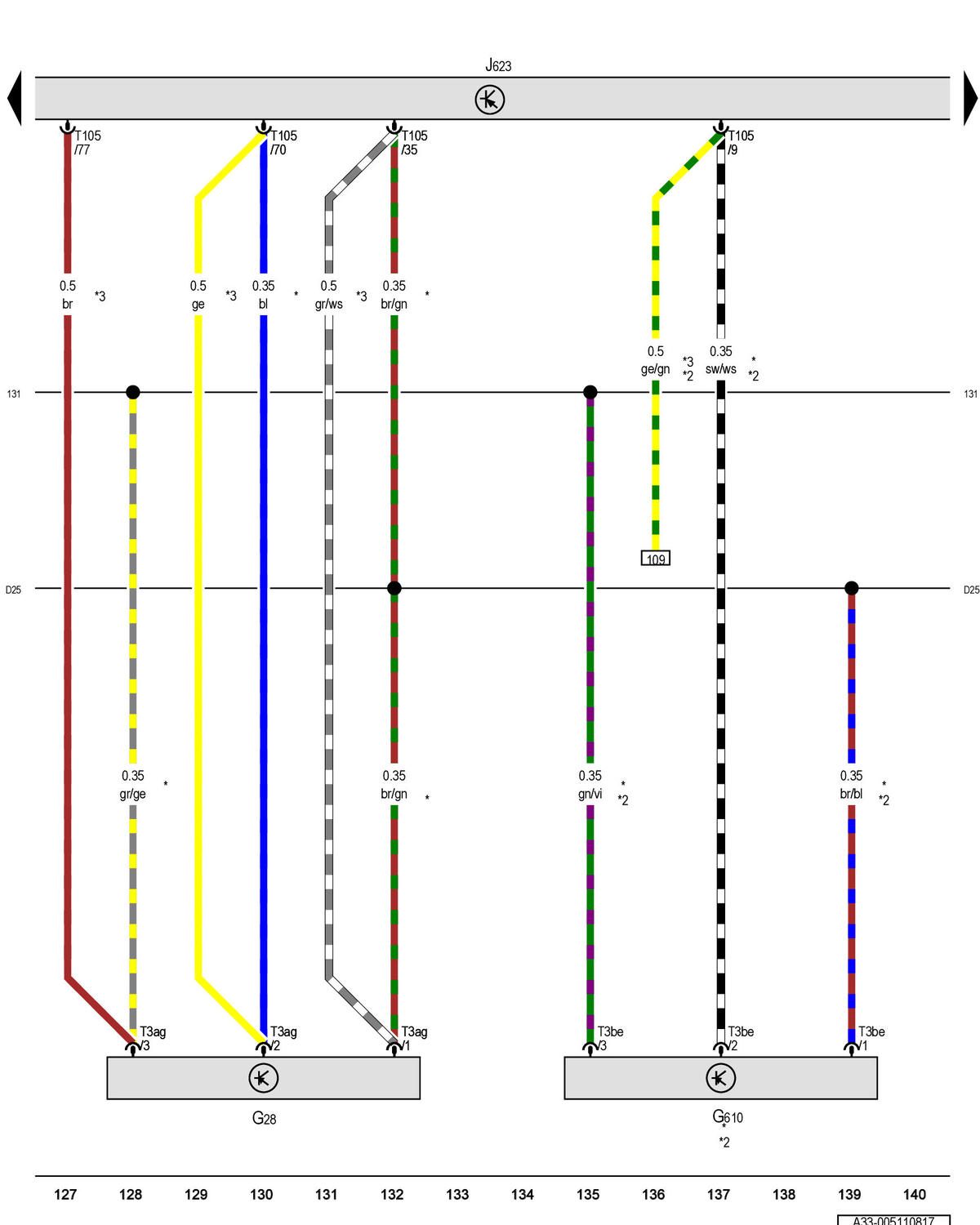

Engine Speed Sensor, Secondary Air Injection Sensor 2, Engine/Motor Control Module: Notes

GWWA33-005110817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
