Intake Manifold Runner Position Sensor

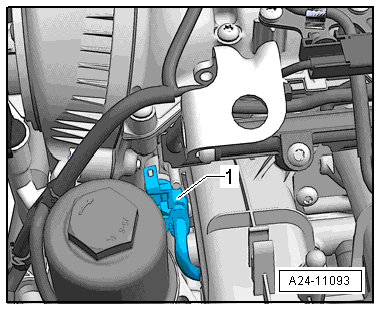

GWWA24-11093

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To remove bend back the tab and remove the potentiometer from the intake manifold.
