Windshield Wiper Motor, Replacing: Installing

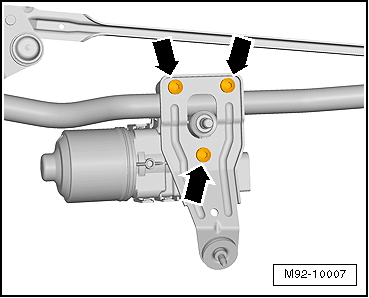

-- Insert the Windshield Wiper Motor -V- with the Windshield Wiper Motor Control Module -J400- into the wiper frame and tighten the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the motor crank -4- to the Windshield Wiper Motor -V- shaft -2- so that the three points shown in the illustration -1-, -2- and -3- line up.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the motor crank and the Windshield Wiper Motor -V- shaft with the nut -2-.

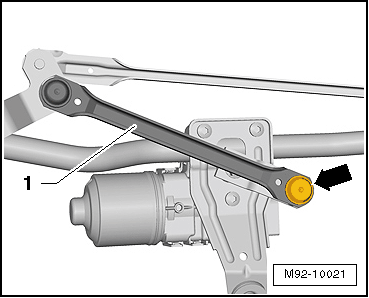

-- Push the ball head -arrow- from the linkage -1- onto the motor crank.
