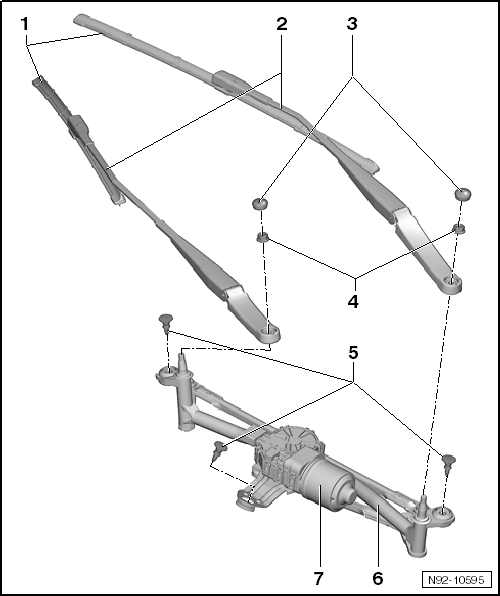

Overview - Windshield Wiper System
- Joint-Free Windshield Wiper
- Removing and Installing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Additional information. Refer to the Owner's Manual
- Windshield Wiper Arm
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Cap
- Nut
- 20 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 3
- Wiper Frame with Linkage
- Removing and Installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Windshield Wiper Motor -V- with Wiper Motor Control Module -J400-
- Removing and installing from the wiper frame. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- 8 Nm (Windshield Wiper Motor -V- bolts to the wiper frame with linkage)
- 18 Nm (windshield wiper motor crank to windshield wiper motor shaft)
