Windshield Washer Pump, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to FRONT BUMPER .

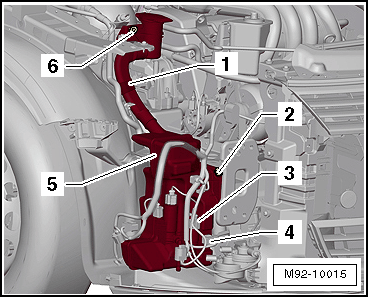

-- Turn the clip to unlock the hose connection and then remove it from the Windshield Washer Pump -V5- -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Catch any draining washer fluid in a suitable container.

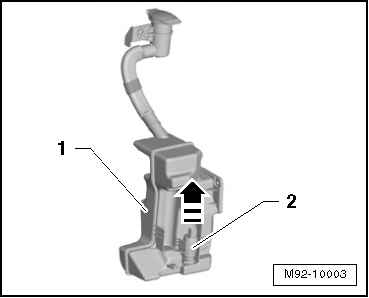

-- Pull the Windshield Washer Pump -V5- -2- upward and out of the container -1- and release and disconnect the connector.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
