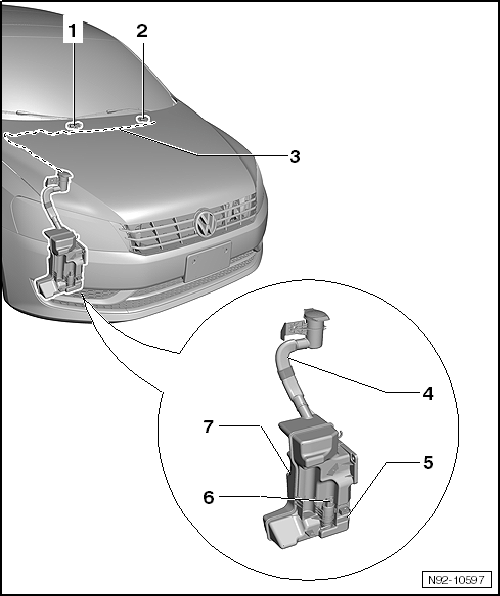

Overview - Windshield Washer System
- Right Windshield Washer Spray Nozzle
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Windshield Washer Spray Nozzle
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Hose
- Hose repair. Refer to WASHER FLUID HOSES, SERVICING .
- Filler Tube for Windshield Washer and Headlamp Washer System Fluid Reservoir
- Do not separate the filler tube from the reservoir.
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Windshield Washer Pump -V5-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Windshield Washer and Headlamp Washer System Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- 8 Nm (windshield and headlamp washer fluid reservoir to body)
