Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment.

-- If equipped remove the ignition key.

-- Remove the front door trim panel. Refer to DOOR TRIM PANELS .

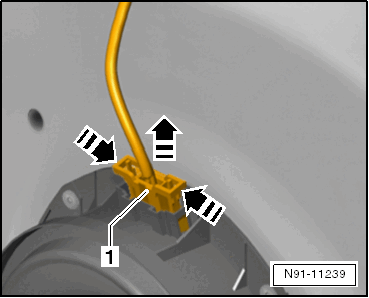

-- Unlock the connector from the speaker in direction of -arrow- and then remove it -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

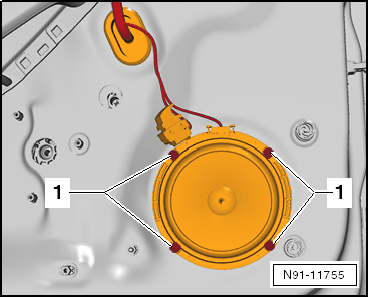

-- Drill out the rivets -1- and remove the speaker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Always remove any shavings resulting from the drilling from the door, otherwise they may cause corrosion damage later.

If paint on door frame is damaged during drilling, touch-up immediately.
