Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Installing

NOTE:

Secure the speaker when installing with special pop rivets (refer to the appropriate parts information).

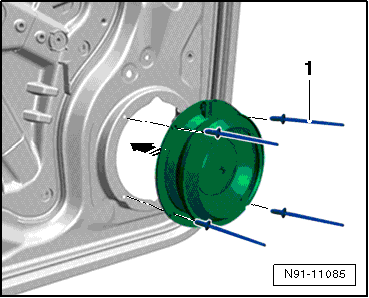

-- Install the speaker in direction of -arrow- with four pop rivets -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector to the speaker.

Install in reverse order of removal.
