Tie Rod End, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

-- Make sure the correct tie rod end is installed on each side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

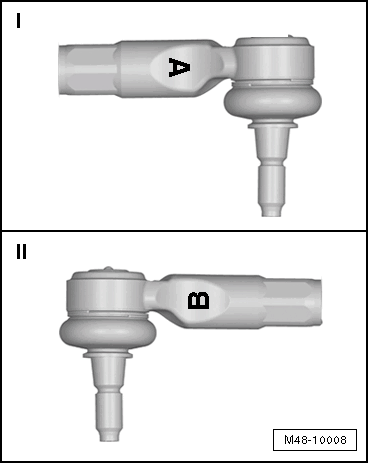

I - Right tie rod end identified with an "A"

II - Left tie rod end identified with a "B"

-- Turn the tie rod end to marking made earlier on the tie rod and secure it with a locking nut.

-- Install the tie rod end into the wheel bearing housing.

-- Install the tie rod end with a new nut.

-- Install the front wheel and tighten the bolts. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

-- Perform vehicle alignment. Refer to VEHICLE ALIGNMENT .
