Steering Gear, Removing And Installing: Removing

-- Turn the steering wheel in the straight position and remove the ignition key so that the steering wheel lock engages.

Vehicles with "Keyless Access" Keyless Locking and Starting System

-- Switch the ignition off and open the driver door so the steering wheel lock engages.

Continuation for all vehicles.

-- Remove the bolts -1- and fold the footwell trim panel -2- in the direction of the -arrow- into the vehicle interior.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- from the universal joint -1-, and then remove the universal joint in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

If The Universal Joint Is Separated From The Steering Gear, The Following Work Cannot Be Performed:

Connect the battery.
Switching on the ignition
Turning the steering gear
Turning the steering column.

These points must be observed since performing these actions could cause irreparable damage.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Remove the lower noise insulation. Refer to NOISE INSULATION .

-- Remove the exhaust system bracket from the subframe -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hex nut -1- from the right and left coupling rod -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2- on the left and right sides.

-- Remove the nuts -arrows- on the left and right side of the vehicle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control arm from the ball joint.

-- Loosen the nut from the tie rod end, but do not unscrew yet.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

To protect the thread, screw the nut on the pin a few turns.

-- Remove the tie rod end from the wheel bearing housing and remove the nut.

:T10187

Vehicles with Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

Continuation for all Vehicles

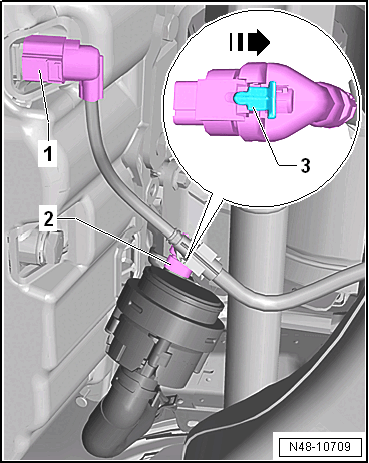

-- Disconnect the connector -1- for the Oil Level Thermal Sensor -G266-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, disconnect the connector -2- from the After-Run Coolant Pump - V51-. To do so, open the catch -3- in the direction of the -arrow- and release the connector.

-- Remove the clips -1 and 2- for the wiring harness -3- from the subframe and the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the steering gear bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the :VAS6931 or :VAG1383A -1- under the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe (refer to SUBFRAME, SECURING ) and lower it approximately 10 cm.

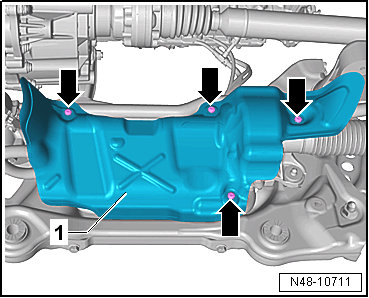

-- Remove the bolts -arrows- and remove the heat shield -1- from the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Different heat shields -1- are installed depending on the engine. On some engine versions, the connectors for the steering gear are accessible without having to remove the heat shield.

-- Disconnect the connectors -1 and 2- from the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

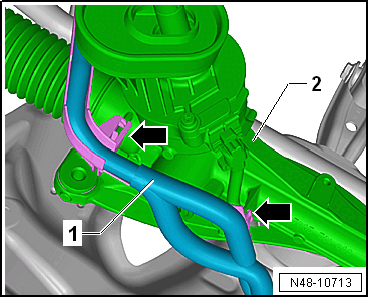

-- Unclip the wiring harness -1- from the steering gear -2- -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

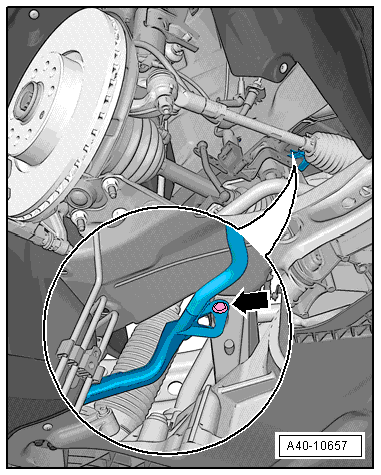

-- Remove the expanding clip -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the subframe using the :VAS6931 or :VAG1383A .

-- Pry the steering gear off of the subframe, for example, using a large screwdriver and remove it toward the rear.

-- Set the steering gear down as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

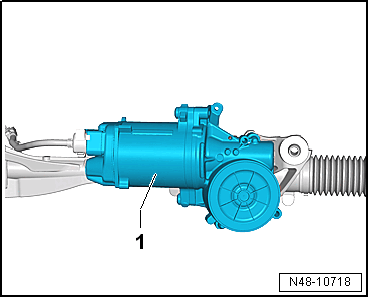

Avoid damage to the control module -1-.
