Steering Gear

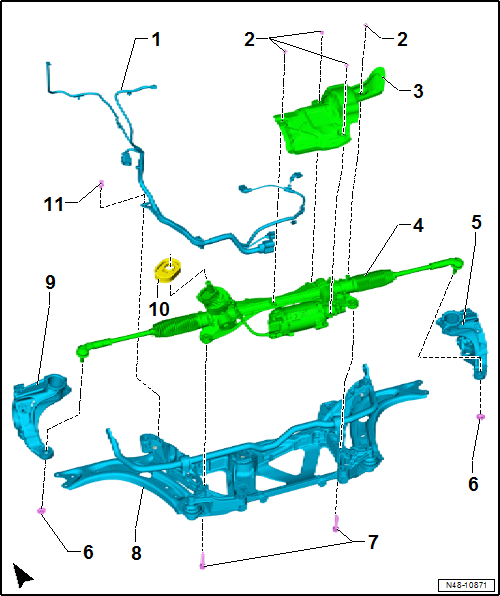

Overview - Steering Gear, Tie Rods. Refer to STEERING GEAR, TIE RODS .
CAUTION:
If The Universal Joint Is Separated From The Steering Gear, The Following Work Cannot Be Performed:
- Connect the battery.
- Switching on the ignition
- Turning the steering gear
- Turning the steering column.
These points must be observed since performing these actions could cause irreparable damage.
- Wire
- There are different versions.
- Bolt
- 8 Nm
- Depending on the engine installed, three or four are installed.
- Heat Shield
- Depending on the engine installed, there are different versions.
- Steering Gear
- Overview. Refer to STEERING GEAR, TIE RODS .
- Removing and Installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
- There are different versions.
- With Power Steering Control Module -J500-
- Can be checked in "Guided Fault Finding ". Refer to Vehicle Diagnostic Tester.
- Right Wheel Bearing Housing
- Nut
- 20 Nm +90°
- Replace after removing.
- Bolt
- 70 Nm +90°
- Replace after removing.
- Subframe
- Left Wheel Bearing Housing
- Seal
- Replace after removing the steering gear.
- Expanding Clip
