Front Upper Fender, Removing And Installing: Installing: Notes

WARNING: This page is about a different variant/trim than selected.

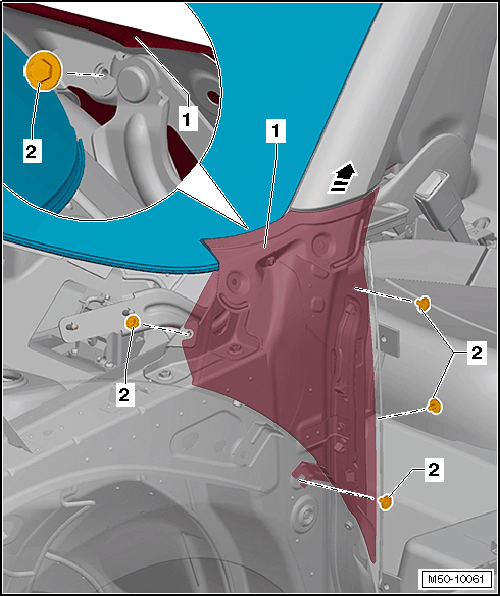

GWWM50-10061Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the front upper fender -1- in reverse order of removal.

-- Note the parallel alignment and gap dimensions.
