Coolant Fan, Removing And Installing: Removing

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Disconnect the connector -arrow-.

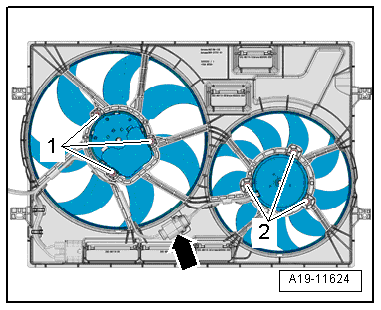

Fig 1: Locating Coolant Fan Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-, and remove the Radiator Fan -V7-.

-- Remove the bolts -2-, and remove the Radiator Fan 2 -V177-.
